Built-in functions

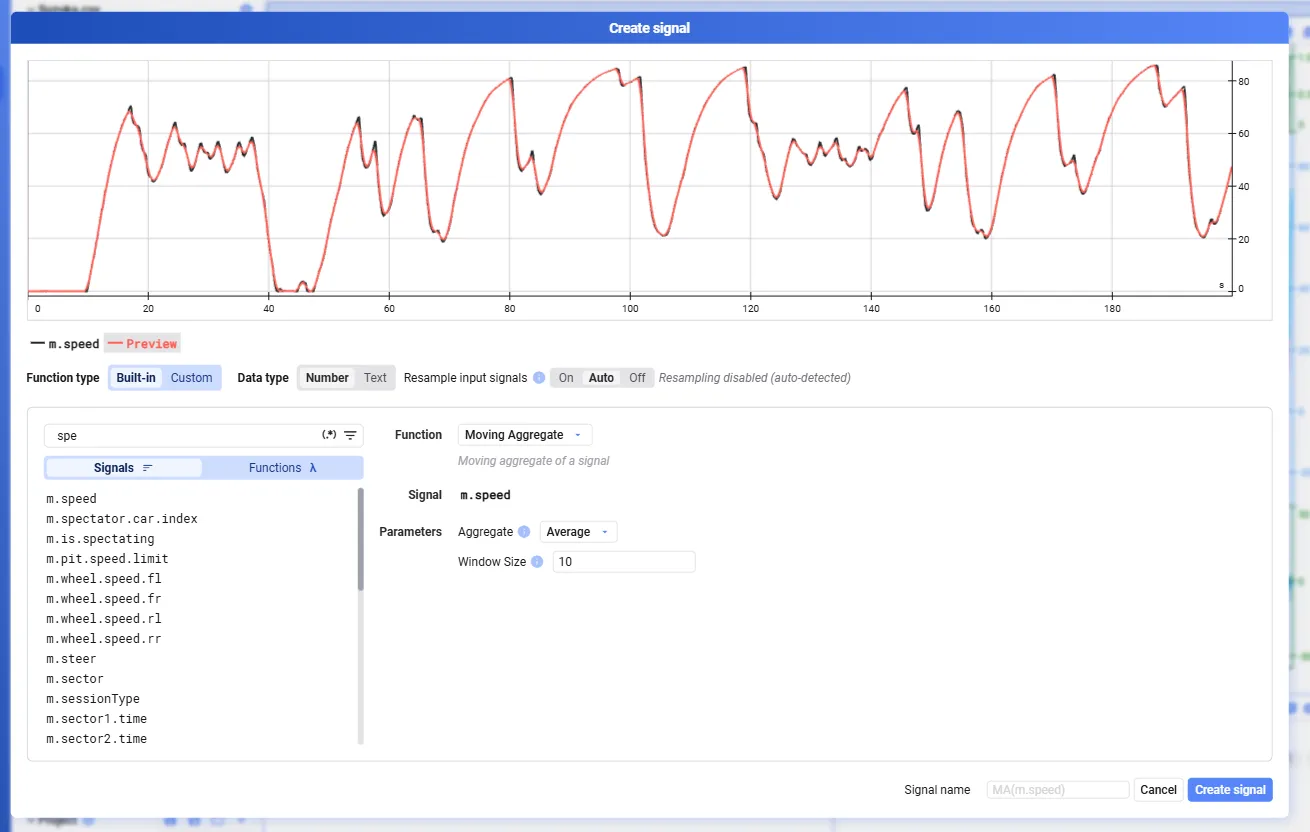

In the Create signal dialog, select the Built-in function type, choose the signal you want to apply it to, and fill in the required parameters.

Function	Description	Parameters
Moving Aggregate	Moving aggregate of a signal	Aggregate — the type of moving aggregate; Window Size — number of samples to average over
Cumulative Sum	Cumulative sum of a signal	Gain — the gain of the signal
Integral	Integral of a signal using the midpoint rule	Gain — the gain of the signal
Linear Calibration	Linear calibration of a signal	Gain — the gain of the signal; Offset — the offset of the signal
Clip	Backwards finite difference of a signal, i.e. v(t) − v(t−1)	Gain — the gain of the signal
Derivative	Backwards discrete derivative of a signal, i.e. (v(t) − v(t−1)) / dt	Gain — the gain of the signal
Remove outliers, stddev	Remove outliers of a signal using standard deviation	Std — the standard deviation of the signal
Remove outliers, fixed limits	Remove outliers of a signal using fixed limits	Min, Max
Sample shift	Shift a signal by a number of samples	Shift — number of samples to shift the signal by
Zeroing	Offset the signal to be 0 at the first data point inside the zoom range	—
Time	Select the time axis of a signal	—
