Hardware

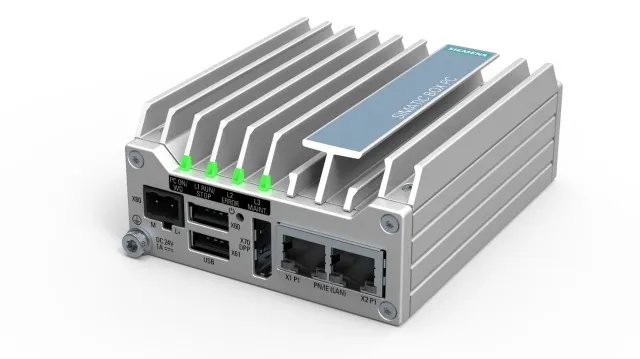

SIMATIC IPC127E
Fanless industrial PC by Siemens, used as the Edge hardware platform.

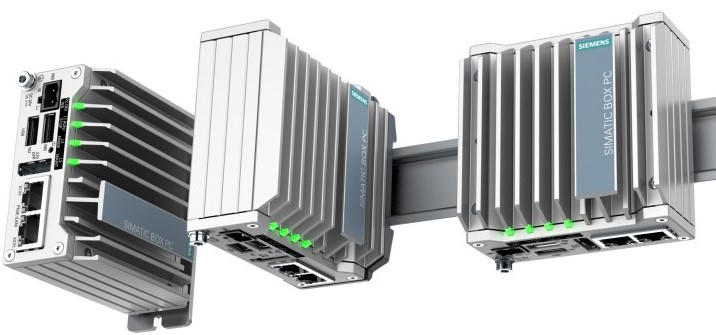

Mounting overview
The IPC127E can be mounted on a DIN rail in two orientations.

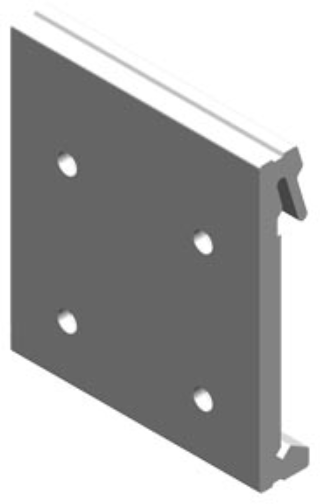

DIN rail — DIN bracket
Standard bracket mounting: device sits flat against the rail.

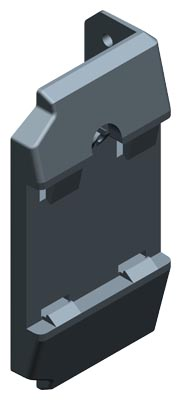

DIN rail — book mount
Book mounting: device stands upright, parallel to the rail. Saves horizontal space.
ProcessorCPUIntel® Atom E3940 Quadcore 1.6 GHzMemoryRAM4 GBStorage64 GB FlashConnectivityEthernet2 × RJ45 (X1 P1, X2 P1)USB2 × USB 3.0DisplayDisplayPortDimensionsWidth85 mm / 3.346 inHeight104 mm / 4.094 inDepth41 mm / 1.614 inNetwork adapter assignmentX1 P1Adapter 1 (eth0) — primary interface, typically connected to the IT/OT networkX2 P1Adapter 2 (eth1) — secondary interface, typically connected to the field device network

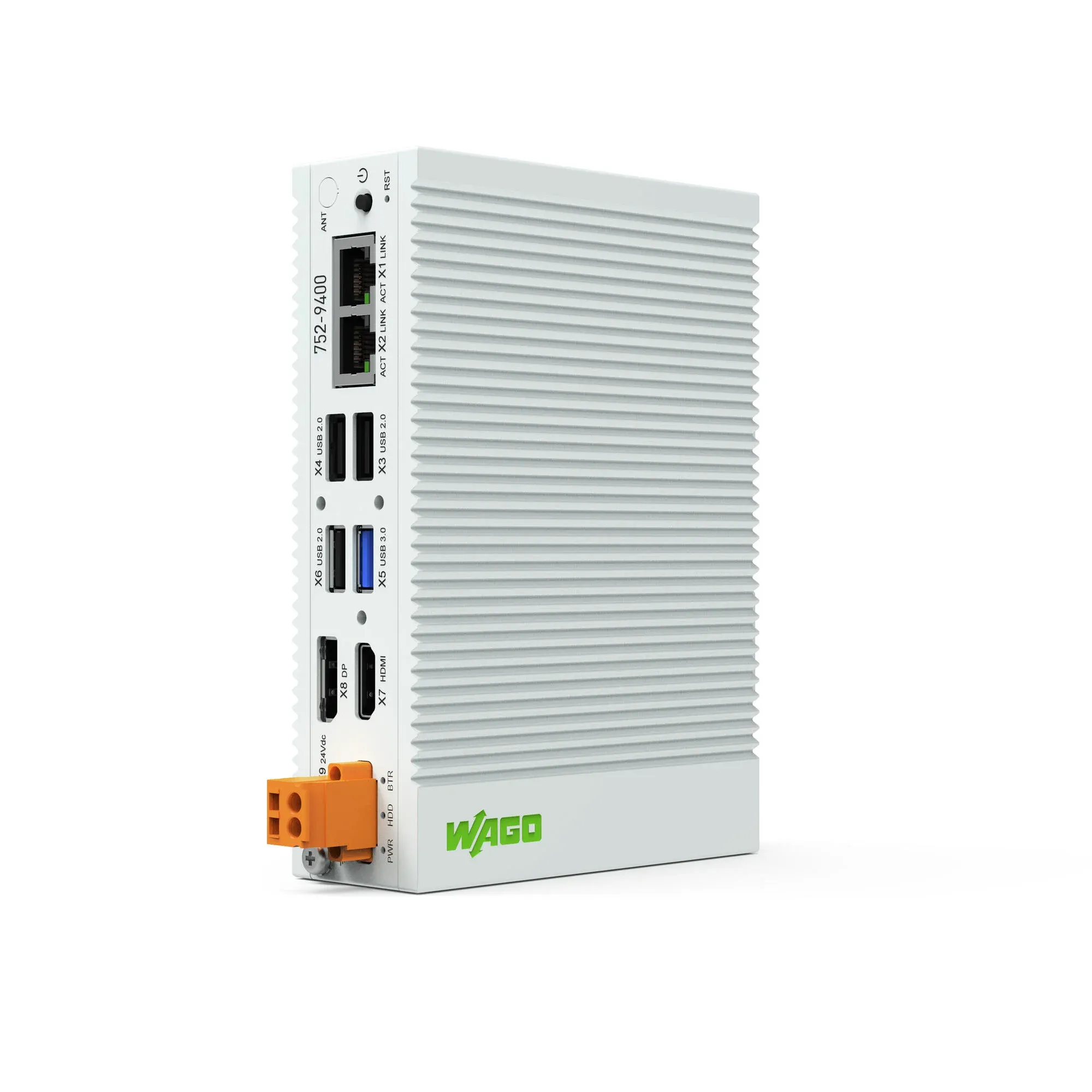

WAGO Edge Computer 752-9400
Fanless industrial PC by WAGO. Mounted in book orientation on a DIN rail.
ProcessorCPUIntel® Atom E3845 Quadcore 1.91 GHzMemoryRAM4 GB DDR3LStorage64 GB mSATAConnectivityEthernet2 × RJ45 1000BASE-T (X1, X2)USB3 × USB 2.0, 1 × USB 3.0DisplayHDMI, DisplayPortDimensionsWidth40 mm / 1.575 inHeight150 mm / 5.906 inDepth105 mm / 4.134 inNetwork adapter assignmentX1Adapter 1 (eth0) — primary interface, typically connected to the IT/OT networkX2Adapter 2 (eth1) — secondary interface, typically connected to the field device network
